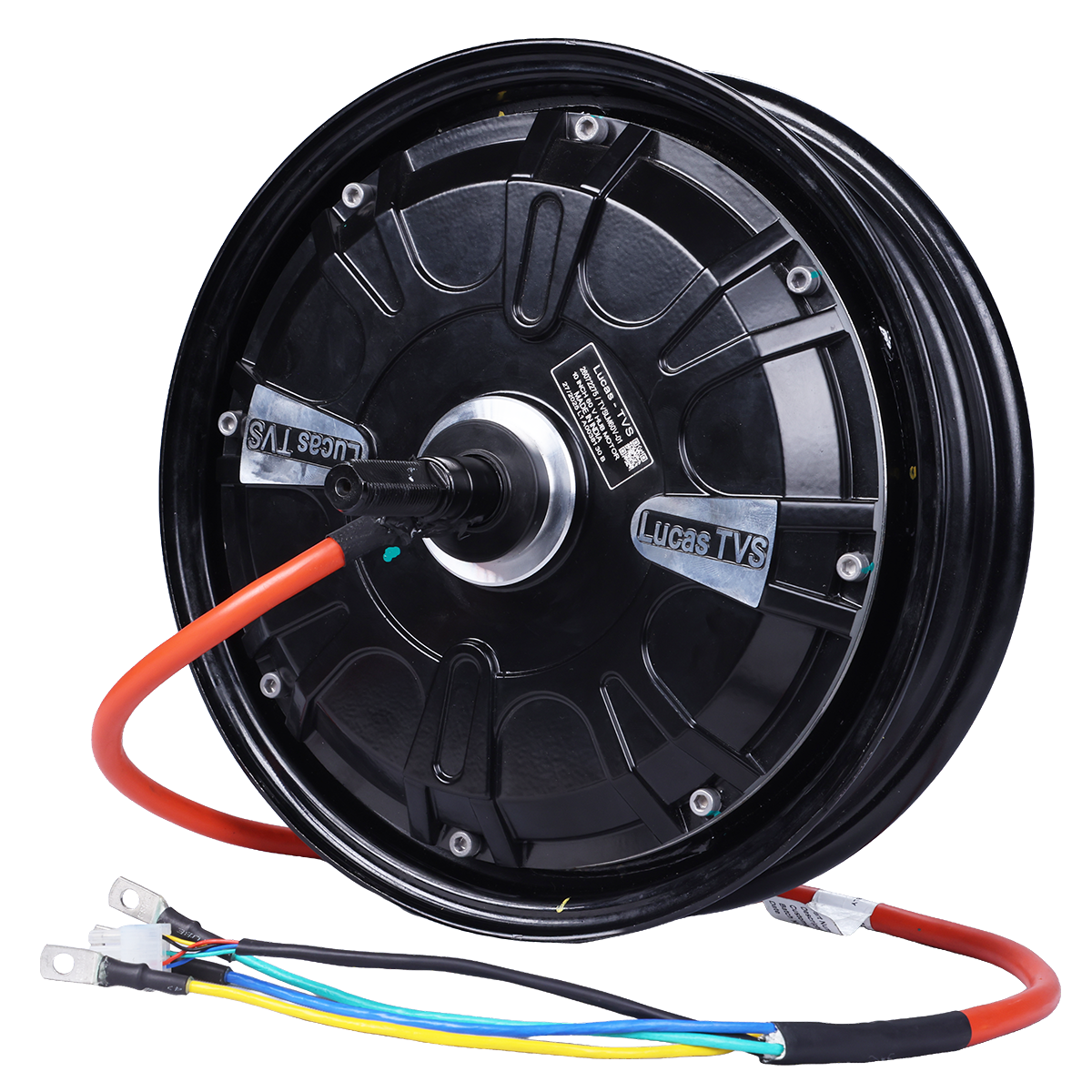

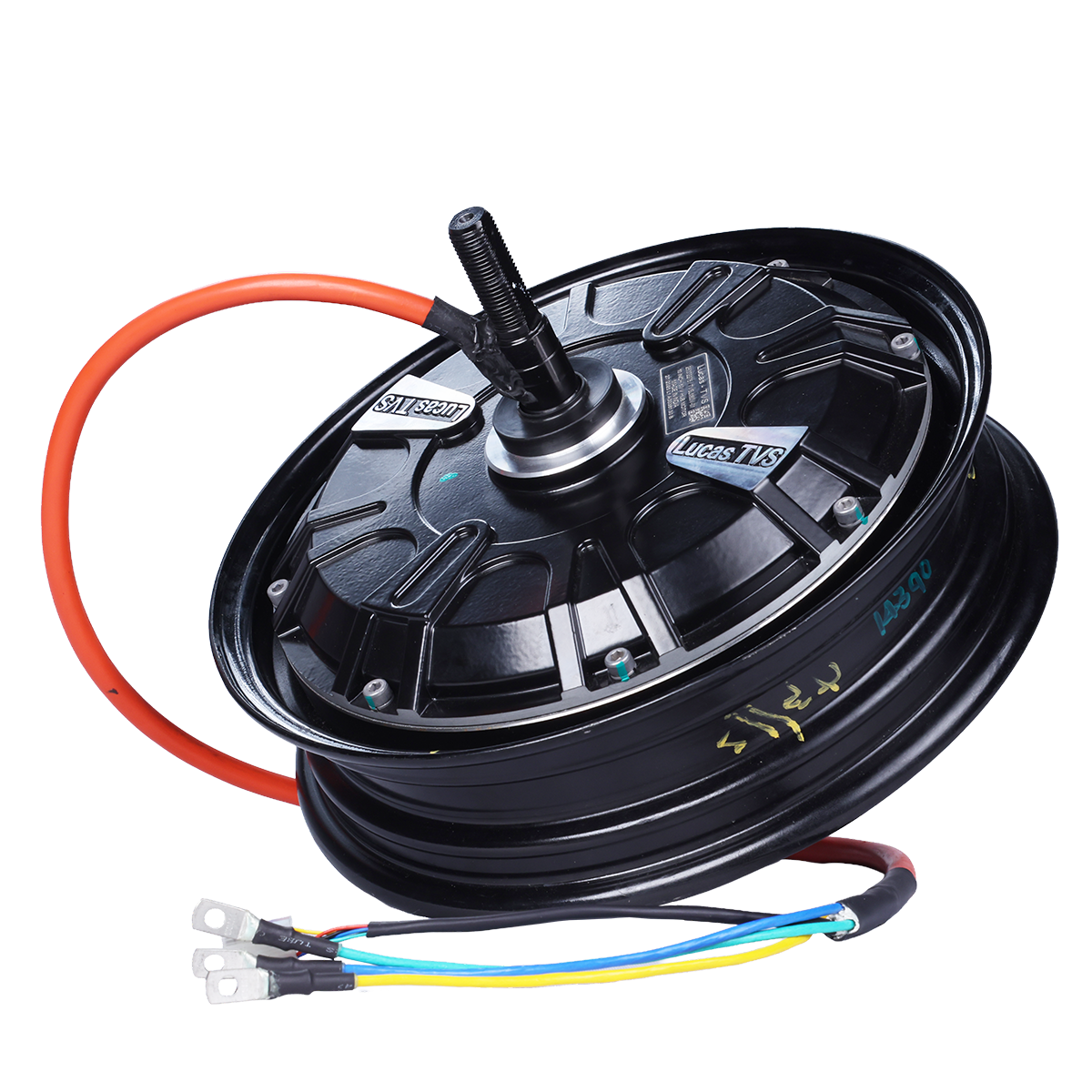

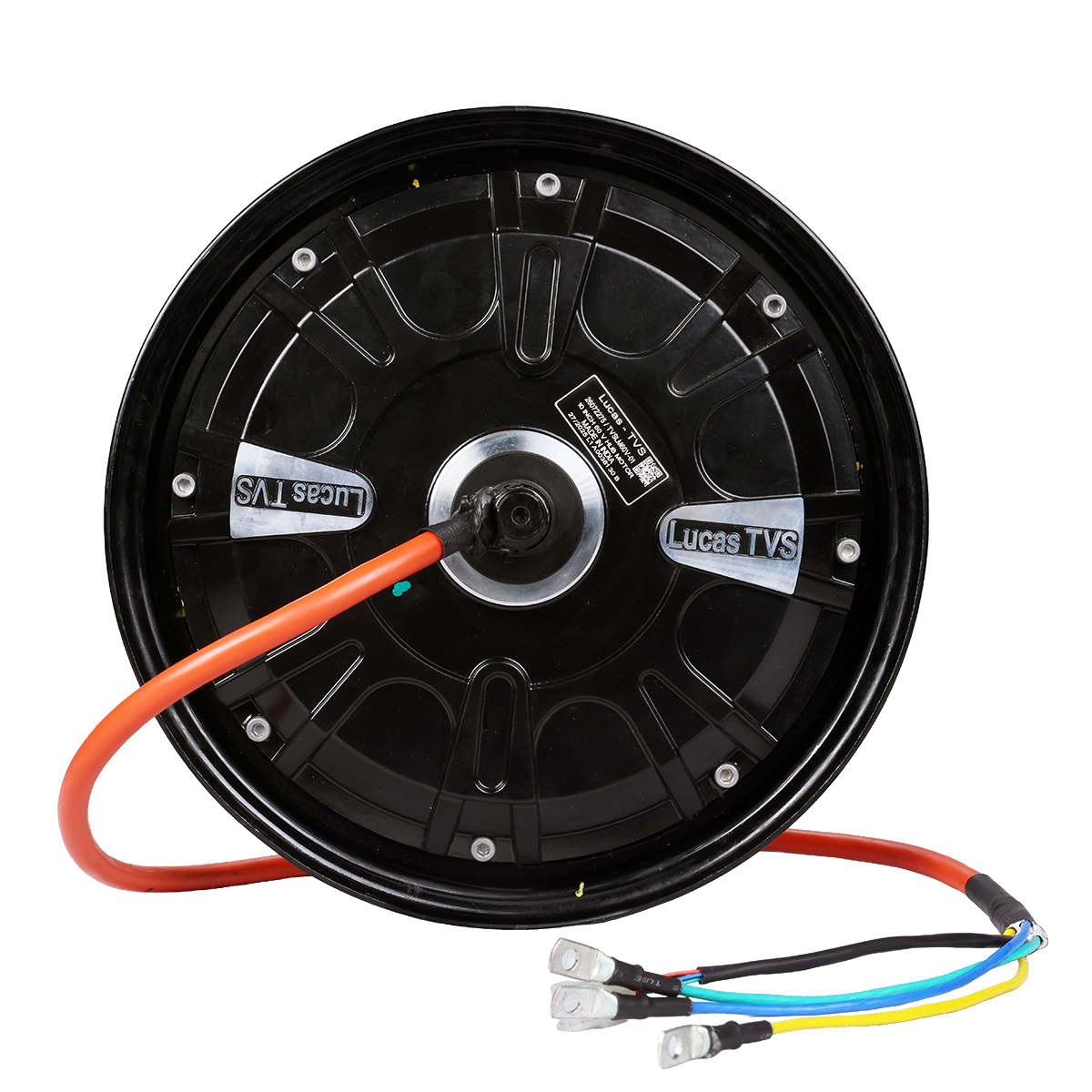

Hub Motor
Reliable. Cost-effective.
Features
- High efficiency during climbing, and better acceleration
- High combined efficiency in operating zone >90%
- Long working life (>10,000 hours)
- Low noise, high torque
- Excellent performance characteristics
- Regenerative braking

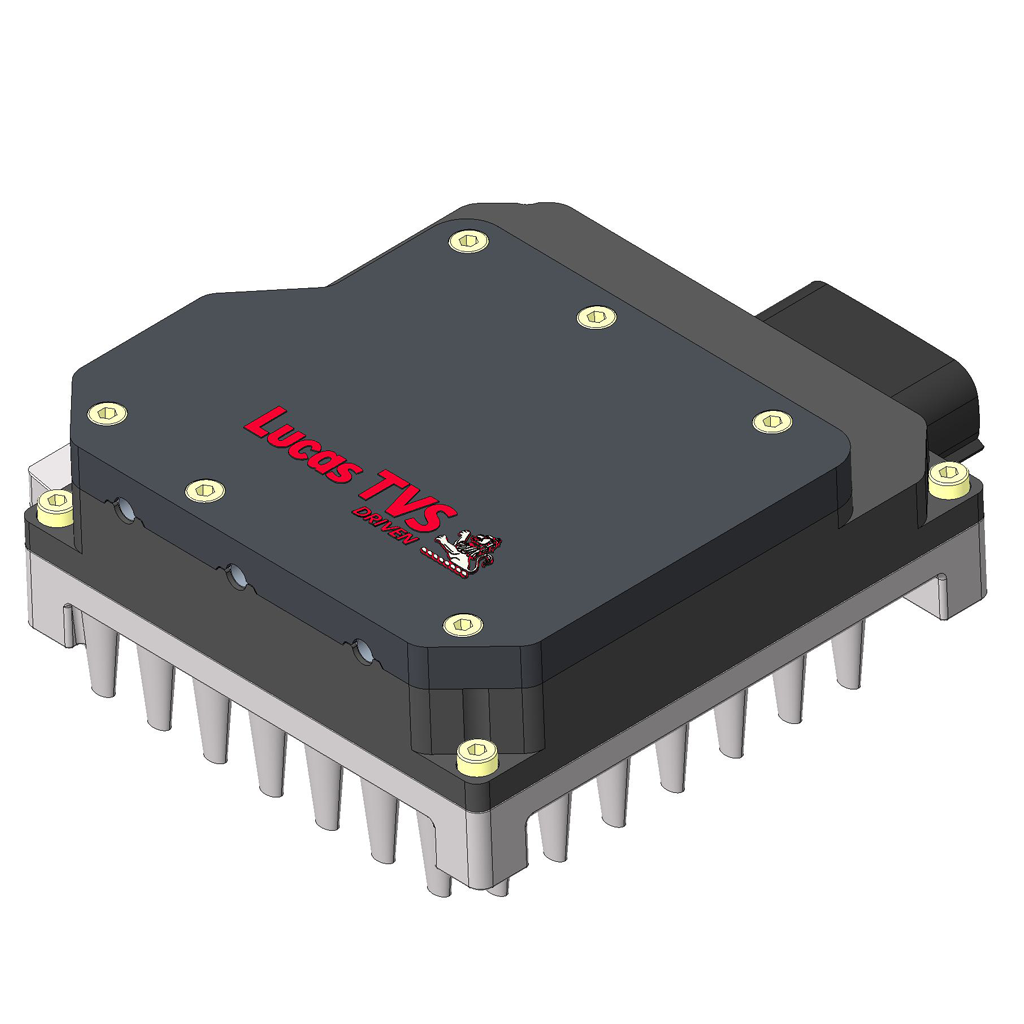

- Operate on multiple voltages: 36V min and 72 V max with the same controller
- CAN Communication
- Indicate failures by CAN message
- Motor phase self detection and calibration
- Support Forward and Reverse Control
- Over Current Protection
- Over Voltage Protection
- Under voltage protection
- Excellent Water & Dust Resistance
Specification
| VARIANT-1 | VARIANT-2 | VARIANT-3 | |
| Motor Type | BLDC with Hall Sensor positioning | BLDC with Hall Sensor positioning | BLDC with Hall Sensor positioning |
| Rated Power | 1200W | 1500W | 1500W |
| Rim Size | 10” | 10” | 12” |
| Peak Power | 1600W | 2000W | 2000W |
| Rated Voltage | 48V or 60V | 48V or 60V | 48V or 60V |
| Speed: Rate RPM | 550 | 670 | 610 |
| Peak RPM | 655 | 820 | 700 |
| Max Torque | 80 Nm | 90Nm | 105Nm |
| Max Efficiency | >90% | >90% | >90% |
| Peak Current | 35A | 43A | 43A |
| Working Temperature( ℃ ) | -5 to 60 | -5 to 60 | -5 to 60 |
| Peak temperature ( ℃) | 100 | 100 | 100 |
| Waterproof Grade | IP 67 | IP 67 | IP 67 |
| Cooling | Natural | Natural | Natural |
| Insulation grade | Class H | Class H | Class H |
| Weight approx ( kg ) | 8kg | 8kg | 12kg |
Exploded View
Performance Curve
